What is LSR Injection Molding?
Understanding the Revolutionary Process That's Changing Manufacturing
Liquid Silicone Rubber (LSR) injection molding represents a fundamental shift in how we approach elastomer manufacturing. While traditional injection molding has dominated the plastics industry for decades, LSR injection molding operates on completely different principles that offer unique advantages for producing high-performance silicone components. Understanding these differences is crucial for manufacturers considering whether LSR technology fits their production needs.
The APSX-LSR injection molding machine brings this advanced technology within reach of businesses that previously couldn't access LSR manufacturing capabilities. By understanding what makes LSR injection molding unique, manufacturers can make informed decisions about incorporating this technology into their operations.

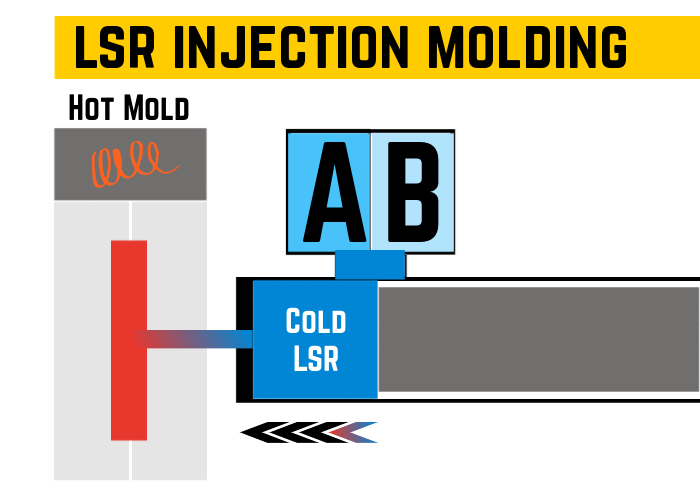

The Fundamental Difference: Cold Material, Hot Molds
The most striking difference between LSR injection molding and traditional thermoplastic injection molding lies in the temperature relationship between the material and the mold. This reversal of conventional injection molding principles creates unique opportunities and challenges that define the LSR process.
In traditional thermoplastic injection molding, solid plastic pellets are heated to their melting point in the injection barrel, creating a molten material that flows like thick honey. This hot, molten plastic is then injected into cold molds where it solidifies as it cools. The cooling process is often the longest part of the cycle, as manufacturers must wait for the plastic to cool sufficiently before ejecting the part.
LSR injection molding operates in exactly the opposite manner. The liquid silicone rubber material remains at room temperature throughout the injection process, maintaining its liquid state as it travels through the injection system. Instead of heating the material, LSR machines inject this room-temperature liquid into molds that are heated to temperatures between 160 and 200 degrees Celsius (320 to 400 degrees Fahrenheit). The heat from the mold initiates a chemical curing reaction that transforms the liquid silicone into a solid, flexible rubber component.
This temperature reversal creates several important advantages. Because the material remains cool during injection, it maintains very low viscosity, allowing it to fill complex mold geometries and thin-walled sections that would be difficult or impossible to achieve with traditional injection molding. The low viscosity also means that LSR can be injected at lower pressures than thermoplastics, reducing stress on both the mold and the injection equipment.
The heated mold approach also enables faster cycle times in many applications. While thermoplastic parts must cool throughout their entire cross-section before ejection, LSR parts cure from the outside in, often allowing for demolding while the core is still completing its cure. This can significantly reduce cycle times, particularly for thicker parts where cooling time would normally be the limiting factor.
The Chemistry Behind LSR: A Two-Part System
Understanding LSR injection molding requires grasping the fundamental chemistry that makes the process possible. Unlike thermoplastics, which undergo physical changes during processing, LSR undergoes a permanent chemical transformation that creates its final properties.
LSR consists of two liquid components, typically referred to as Part A and Part B, that remain stable when stored separately but react when combined in the presence of heat. Part A contains the base silicone polymer along with a platinum-based catalyst, while Part B contains a cross-linking agent, usually methyl hydrogen siloxane, along with an alcohol inhibitor that prevents premature curing.
These two components are stored in separate containers and remain completely stable at room temperature for extended periods. The magic happens when they are combined in precise 1:1 ratios just before injection. The mixing process must be thorough and consistent to ensure uniform properties throughout the final part, but the actual curing reaction doesn't begin until the mixed material encounters the heat of the mold.
This chemical curing process, known as vulcanization, creates permanent cross-links between the silicone polymer chains. Unlike thermoplastics, which can be remelted and reformed multiple times, these cross-links are permanent. Once cured, LSR cannot be remelted or reformed, making it a true thermoset material.
The platinum catalyst system used in LSR offers several advantages over alternative curing systems. Platinum-cured silicones produce no harmful byproducts during curing, making them ideal for medical and food-contact applications. The curing reaction is also highly controllable, allowing manufacturers to adjust cure rates by modifying temperature and catalyst concentrations.
The precision required in mixing the two components has driven the development of specialized equipment for LSR injection molding. Metering pumps ensure exact ratios, while static mixers create homogeneous blends without introducing air bubbles that could compromise part quality. This level of precision is essential because even small variations in the mixing ratio can significantly affect the final properties of the cured silicone.
Equipment Differences: Specialized Systems for Unique Requirements
The unique characteristics of LSR processing have necessitated the development of specialized injection molding equipment that differs significantly from traditional thermoplastic machines. These differences reflect the fundamental process variations between the two technologies and highlight why LSR manufacturing requires dedicated equipment.
The most obvious difference lies in the material handling system. Traditional injection molding machines use a heated barrel with a reciprocating screw to melt and homogenize plastic pellets. LSR machines, in contrast, use dual metering pump systems that precisely measure and deliver the two liquid components. These pumps must maintain exact 1:1 ratios while handling materials with very low viscosity, requiring precision that far exceeds typical industrial pumping applications.
The mixing system represents another critical difference. LSR machines incorporate static mixers that blend the two components as they flow toward the injection nozzle. These mixers must create a homogeneous blend without introducing air bubbles or creating excessive pressure drop. The design and sizing of these mixers is crucial for achieving consistent part quality and preventing premature curing in the injection system.
Temperature control systems in LSR machines are also fundamentally different. While thermoplastic machines focus on heating the barrel and cooling the mold, LSR machines must maintain precise temperature control in the opposite direction. The material delivery system must remain cool to prevent premature curing, while the mold requires precise heating to ensure proper cure rates and part quality.
The injection nozzle design for LSR machines incorporates special features to prevent material curing in the nozzle tip. Spring-loaded shut-off nozzles are commonly used to prevent material from remaining in contact with the hot mold surface between shots. Some systems also incorporate cooling channels in the nozzle to maintain material temperature below the curing threshold.
Mold design for LSR processing requires different considerations than thermoplastic molds. The heated mold requirement means that LSR molds must incorporate heating elements and temperature control systems. The low viscosity of LSR also requires more precise parting line design and venting systems to prevent flash while allowing air to escape during filling.
The APSX-LSR machine incorporates all these specialized features in a compact, affordable package that makes LSR technology accessible to smaller manufacturers. By integrating the metering pumps, mixing system, temperature controls, and injection unit into a single, user-friendly platform, the APSX-LSR eliminates many of the complexities traditionally associated with LSR processing.
Applications Where LSR Excels: Beyond Traditional Manufacturing
The unique properties of LSR injection molding make it the preferred choice for applications where traditional manufacturing methods fall short. Understanding these applications helps illustrate why LSR technology has become essential in so many industries.
Medical device manufacturing represents one of the largest and most demanding applications for LSR injection molding. The biocompatibility of platinum-cured silicone, combined with the precision and cleanliness of the injection molding process, makes LSR ideal for components that come into contact with the human body. Respiratory masks, surgical instrument seals, and implantable device components all benefit from LSR's unique combination of properties.
The ability to produce parts with complex internal geometries makes LSR injection molding particularly valuable for fluid handling applications. Pump diaphragms, valve seals, and flow control components can incorporate intricate internal passages and thin membranes that would be impossible to achieve with other manufacturing methods. The chemical resistance of LSR ensures that these components maintain their properties even when exposed to aggressive fluids or cleaning agents.
Automotive applications have embraced LSR injection molding for components that must perform reliably under extreme conditions. Wire harness seals, sensor housings, and gaskets benefit from LSR's temperature stability and resistance to automotive fluids. The precision of the injection molding process ensures that these components maintain their sealing properties throughout the vehicle's service life.
Consumer electronics applications increasingly rely on LSR components for waterproofing and environmental protection. The ability to mold extremely thin seals and gaskets with complex geometries enables the design of electronic devices that are both compact and environmentally resistant. The optical clarity available with certain LSR formulations also enables applications such as camera lens seals and display protection components.
The growing market for wearable devices has created new opportunities for LSR injection molding. Skin-contact components for fitness trackers, medical monitors, and smart watches require materials that are comfortable, hypoallergenic, and resistant to sweat and cleaning products. LSR meets all these requirements while enabling the complex geometries needed for ergonomic designs.
Conclusion: The Future of Flexible Manufacturing
LSR injection molding represents more than just an alternative manufacturing process—it's a fundamentally different approach that enables product designs and performance characteristics that are simply not achievable with traditional methods. The combination of room-temperature liquid material and hot mold curing creates unique opportunities for manufacturers willing to embrace this technology.
The APSX-LSR injection molding machine makes this advanced technology accessible to manufacturers who previously couldn't justify the investment in traditional LSR equipment. By understanding the fundamental differences between LSR and thermoplastic injection molding, manufacturers can identify opportunities where LSR's unique capabilities provide competitive advantages.
As industries continue to demand higher performance materials, greater design flexibility, and more sustainable manufacturing processes, LSR injection molding will play an increasingly important role. The technology's ability to produce complex, high-performance components with minimal waste and energy consumption aligns perfectly with modern manufacturing priorities.
Whether you're developing medical devices that require biocompatible materials, automotive components that must withstand extreme conditions, or consumer products that demand both performance and aesthetics, understanding LSR injection molding opens up new possibilities for innovation and competitive advantage. The question is not whether LSR injection molding will become more important in manufacturing, but rather how quickly manufacturers will recognize and capitalize on its unique capabilities.
